Science Art: Culpeper’s Microscope, 1797.

Scientific illustration from the 1797 Encyclopedia Britannica of a compound microscope, an 18th century scientific instrument.

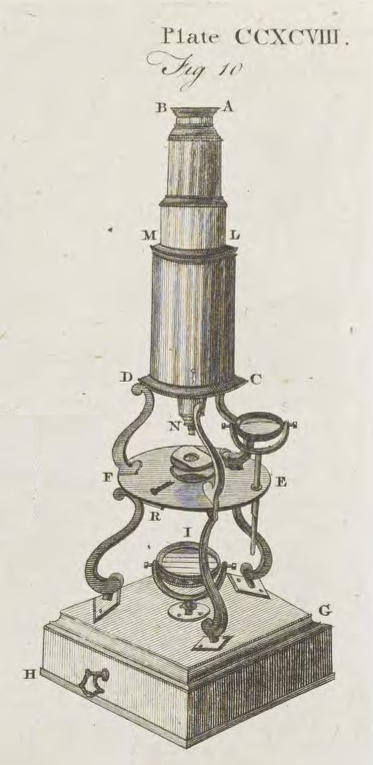

Scientific illustration from the 1797 Encyclopedia Britannica of a compound microscope, an 18th century scientific instrument.

This is a single microscope from a page of microscopes in the 1797 edition of the Encyclopedia Britannica, which I found on archive.org.

This particular one is a compound microscope. It’s mostly brass (or, as the encyclopedia puts it, “a large external brafs body, A, B, C, D, fupported upon three fcrolls”), but has a convex mirror down below and some lenses that can be slid up and down to focus.
