Science Art: Illustration, New Model 1806 Fiber-Optics Cathode-Ray Tube Visicorder from a Honeywell brochure, c.1973

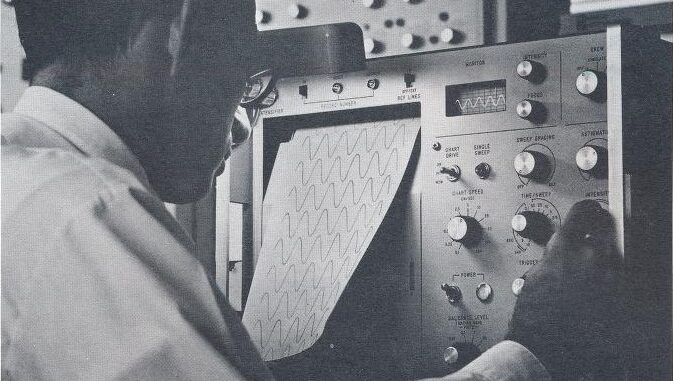

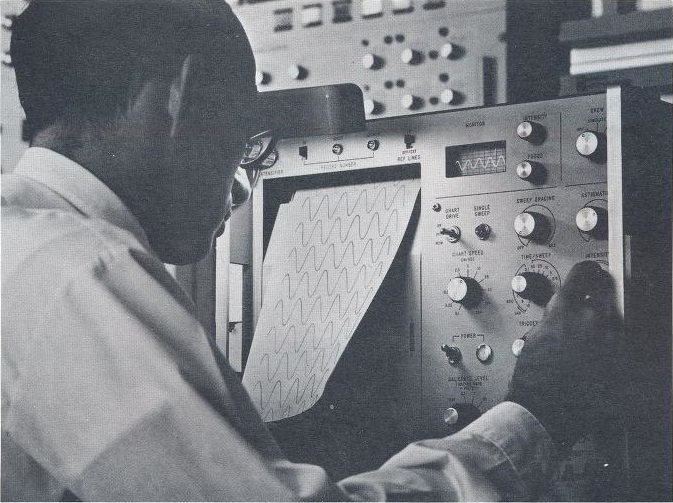

Scientific illustration of an oscilloscope in use, with a cathode-ray tube and paper print-outs.
Scientific illustration of an oscilloscope in use, with a cathode-ray tube and paper print-outs.

This is a scientist operating scientific equipment, or a model posing as a scientist showing off the capabilities of a shiny new piece of informational display equipment.

It’s an oscilloscope, an electronic device for measuring things like frequency and amplitude and wave-shapes of signals including, in the case of this model, the cathode-ray signals that create moving pictures on a TV screen. In other words, it can be used to record video — no simple thing in the age before videotape and personal computers.

I found the brochure here, on archive.org.
